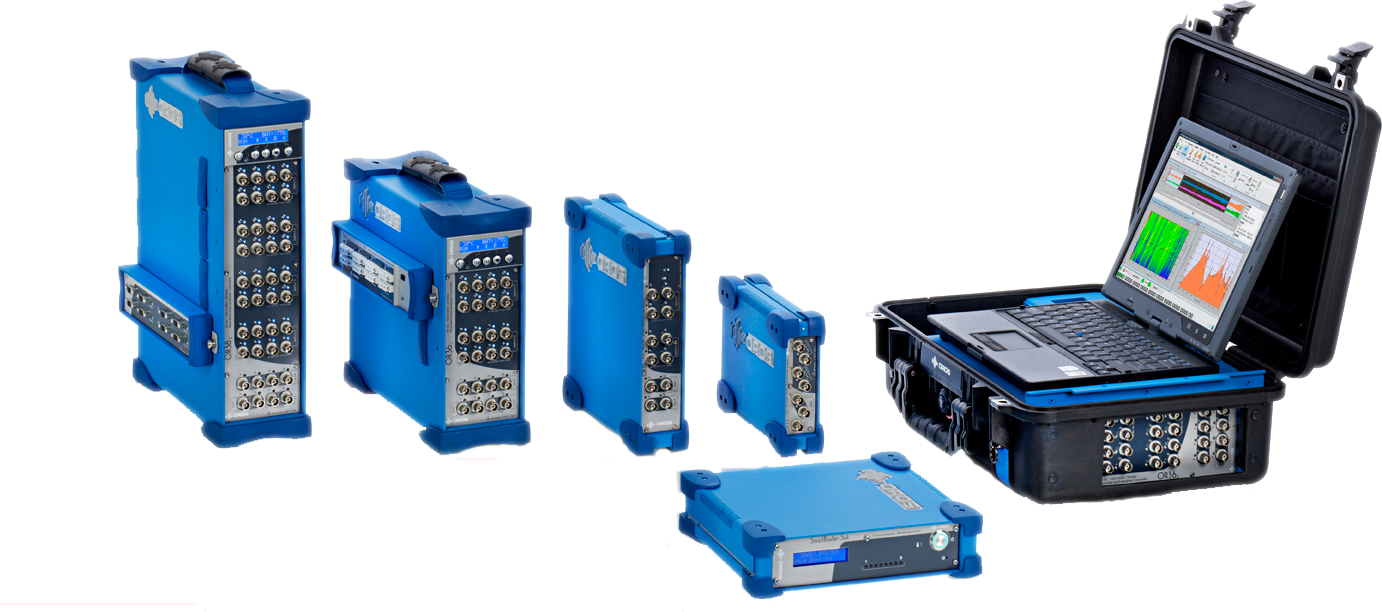

Oros Multi-Channel Analyzers

The OROS 3-Series noise and vibration analyzers are made for the field, flexible and accurate, guaranteeing success in all your measurements! D-rec offers an unique technology for stand-alone digital data recording measurements. It is the best way to replace old DAT recorders.

Inputs‘ compatibility

  • ICP® accelerometers, force & microphone (2 or 4 mA)
  • Proximity probe & keyphasor with ±40 V range
  • Temperature, Torque, Power… parameter with universal and auxiliary DC inputs
  • Workshop/Ship/factory ground loops with Float coupling
  • Strain, Pressure, Thermocouples with the optional Xpod conditioner
  • High speed Tachometer & Torsional encoder with the integrated frequency to voltage converter

Main Features

  • 100% PC or PDA free
  • Secured data recording
  • Bright LCD and large buttons
  • Compatible with CAN, Xpod, universal inputs
  • Removable storage disks (HDD or SSD)

Personal removable disk

The first removable disk for a Noise & Vibration analyzer: the Mobi-Disk. It is the local storage device for OR36, OR38 and Mobi-Pack. Ordering extra disks allows to assign disks per projects, making easier the file management.

Main Features

  • 60 GB shock proof disk
  • Dual port (USB 2.0 & analyzer slot)
  • High throughput (32 ch x 51.2 kS/s)

The OROS analyzers are flexible enough to handle your measurements, whatever the application. These instruments overcome most of the measurement obstacles with their wide frequency bandwidths from milliHertz to 40 kHz and the extensive 140 dB dynamic range. Thanks to these attributes, OROS analyzers are the right choice for all your noise and vibration applications.

NVGate is the cornerstone for all measurement tasks. From field acquisition to reporting, it gathers the major measurements’ steps in a unique interface. It hosts all OROS software modules driving the 3-Series analyzers.

Main Features

  • Task-oriented Vision interface
  • On-line or post-analysis
  • Simultaneous recording of time domain signal
  • Complete reporting tools to Word® and Excel®
  • Dedicated modes for structural, rotating and acoustics
  • Personal control panel and preferences
  • Mask editor and alarms
  • Macros, sequence and TCP/IP control
  • Calibration suite

OR34 is the smallest instrument in this series. Its size sacrifices nothing to efficiency. This 4 channel analyzer brings all the best from the 3-Series technology in a professional, rugged and powerful unit.

OR34 is the compact real-time multi-analyzer that integrates the best of noise & vibration analysis technology in an ultra mobile instrument. OR34 is the synthesis of the ultimate 3-Series technology and OROS‘ wealth of experience in measurement. Designed to offer the essentials in a professional instrument, OR34 will follow you everywhere.

Weighting less than 1.4 kg (3 lbs), OR34 is the lightest analyzer of its class. OR34 is ultra-portable and can be carried easily along with your laptop for intensive use. Its exceptional robustness makes it the instrument you can trust. Choose OR34 and go straight to the essentials.

Main Features

  • Ultra-light: 1.4 kg (3 lbs)
  • Hand size (A5 foot print)
  • Uninterpretable power supply
  • 2 triggers/tachometers inputs
  • 1 generator output
  • 1 computation DSP
  • Real-time bandwidth 40 kHz
  • ± 10 V Inputs, 24 bits, ICP®
  • 100 Mbits/s Ethernet

Based on a range of modular instruments, from 4 to 32 channels, the Teamwork technology enables to cascade or distribute the analyzers to measure up to 1000 channels. Instruments, conditioners and software licenses are exchangeable and flexible. Data are also easy to share thanks to the native technology.

Main Features

  • 40 kHz Real-time multi-analyzer, recorder
  • 8 universal inputs AC/DC/Float/ICP/TEDS
  • 2 Ext synch (tachs) // +2 dynamic inputs
  • Mix & match instruments or conditioners
  • 24 bits, 130 dB, ±40 V inputs
  • AC/DC/FLOAT/ICP/TEDS
  • 2 multi-purpose generators
  • Cascadable units, up to 1000 channels
  • Wi-Fi, 1Gb/s LAN, WAN connection to PC
  • CAN bus, XPod conditioner’s slot
  • Long life battery + 2 battery XPod slot
  • 1 or 2 ForceDSPs, on-board 64 GB solid state disk
  • Stand-alone recorder, LCD control panel
  • Easy to carry 2.9 kg, fit 13” PC

Up to 16 channels, OR36 is a synthesis of components usually used separately for measurements: analyzer, recorder, conditioners in a single portable instrument.

With a comfortable computing power and its built-in Mobi-Disk, OR36 faces any measurement situation. It offers the capability of an advanced laboratory instrument in a modular, rugged and portable package.

Teamwork Technology

Based on a range of modular instruments, from 4 to 32 channels, the Teamwork technology enables to cascade or distribute the analyzers to measure up to 1000 channels. Instruments, conditioners and software licenses are exchangeable and flexible. Data are also easy to share thanks to the native technology.

Main Features

  • Rugged 4 to 16 channels chassis
  • Portable: 5.2 kg (11.4 lbs)
  • Up to 40 kHz and 25.6 kHz bandwidths
  • 4, 8, 12 or 16 universal inputs
    • ± 40 V range, 24 bits
    • Dynamic: AC/DC/ICP®/Float/TEDS
    • Parametric: 10 S/s 50 Hz and 60 Hz rejection
  • Support expander modules (Xpod) for strain gauges and thermocouples
  • 2 to 6 triggers/tachometers – 2 to 6 generator outputs
  • 1 Gb/s Ethernet PC connection, LAN, WAN and wireless
  • AC/DC power supply + internal battery
  • 1 to 4 real-time computation ForceDSPs
  • Stand alone recorder (D-rec) with removable 128 GB SSD

Up to 32 channels, OR38 is a synthesis of components usually used separately for measurements: analyzer, recorder, conditioners in a single portable instrument.

With a comfortable computing power and its built-in Mobi-Disk, OR38 faces any measurement situation. It offers the capability of an advanced laboratory instrument in a modular, rugged and portable package.

Teamwork Technology

Based on a range of modular instruments, from 4 to 32 channels, the Teamwork technology enables to cascade or distribute the analyzers to measure up to 1000 channels. Instruments, conditioners and software licenses are exchangeable and flexible. Data are also easy to share thanks to the native technology.

Main Features

  • Rugged 8 to 32 channels chassis
  • Portable: 8 kg (18 lbs)
  • Up to 40 kHz and 25.6 kHz bandwidths
  • 8, 16, 24 or 32 universal inputs
    • ± 40 V range, 24 bits
    • Dynamic: AC/DC/ICP®/Float/TEDS
    • Parametric: 10 S/s 50 Hz and 60 Hz rejection
  • Support expander modules (Xpod) for strain gauges and thermocouples
  • 2 to 6 triggers/tachometers – 2 to 6 generator outputs
  • 1 Gb/s Ethernet PC connection, LAN, WAN and wireless
  • AC/DC power supply + internal battery
  • 1 to84 real-time computation ForceDSPs
  • Stand alone recorder (D-rec) with removable 128 GB SSD
