Nor278: Reference sound source for Sound Power measurements
Noise sources / nor278
Nor279: Impact ball
Nor277: Tapping Machine

Nor278: Reference sound source for Sound Power measurements

Nor278
[vc_gallery type=“image_grid“ images=“3970,3866,3865″]

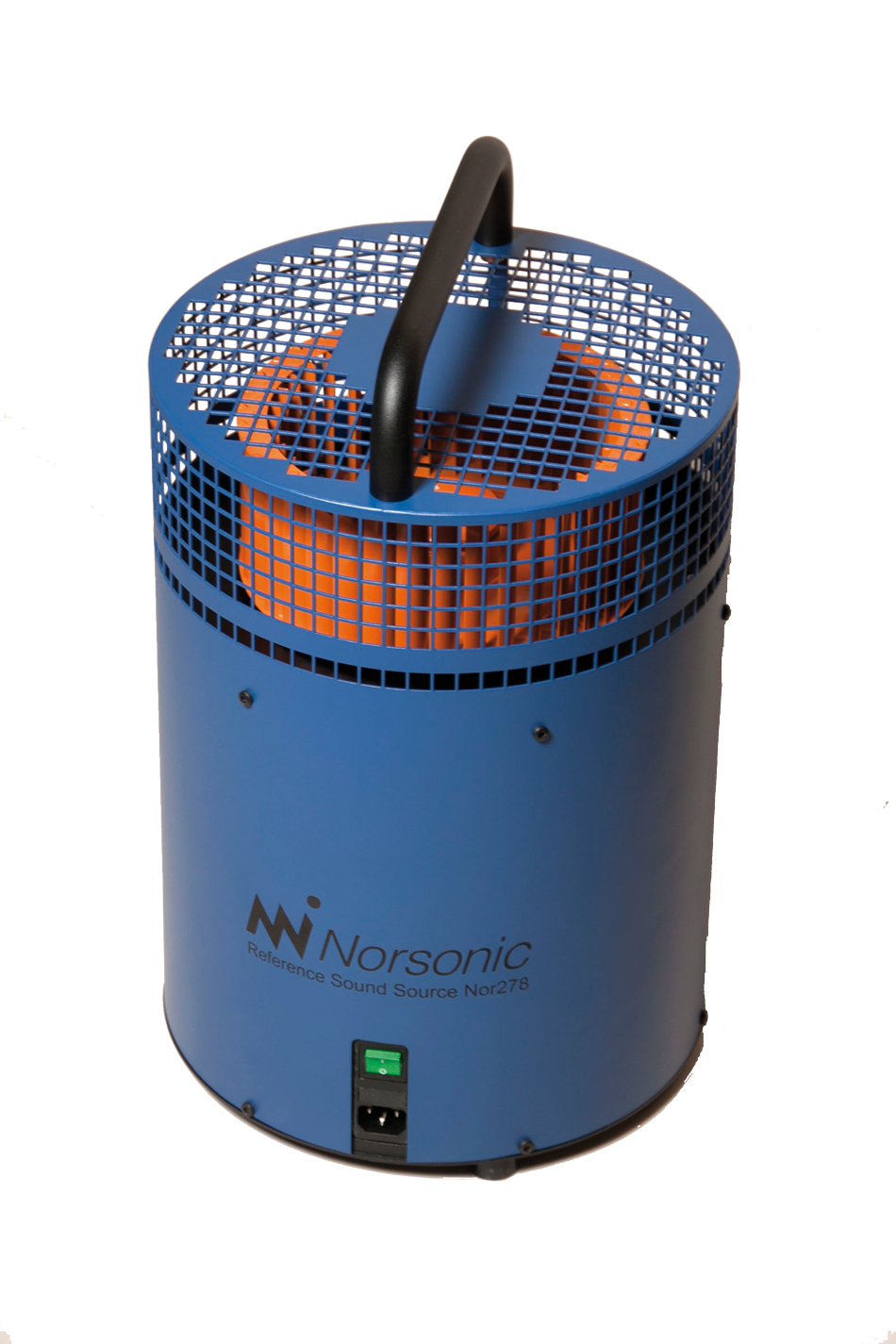

Nor278: Reference sound source for Sound Power measurements

The rugged and compact design makes it well suited for both laboratory and field use. The design ensures a stable and uniform sound power output with unique long-term stability. The reference sound source Nor278 is designed to produce a stable and uniform sound power output with unique long-term stability. The high sound power output makes it ideal for sound power measurements in a noisy environment. The rugged, but yet portable and light weight construction is perfect for field us as well a laboratory use. Every effort is made in the design to ensure a uniform frequency response and optimum directional characteristic well inside the requirements in ISO 6926.

  • Substitution and Juxtaposition methods for determination of sound power of noise sources according to ISO 3747
  • Comparison method for determination of sound power of noise sources according to ISO 3741, ISO 3743-1, ISO 3744 and 3747.
  • A weighted Sound power output : 93 dB re 1 pW (50 Hz line frequency)
  • Sound power 50 – 20.000 Hz: 94 dB re 1 pW (50 Hz line frequency)
  • Fulfills ISO 6926 for reference sound sources in the extended frequency range 50 – 20.000 Hz.
  • Individual calibrated (accredited calibration optional)
  • Long-term stability
  • Weight 18,6 kg
  • Rugged
Nor278
